DC Fast Charging Interfaces
SUNCAR products allow DC fast-charging interfaces to be integrated into a vehicle or machine with minimal effort. The communication unit, current measurement, and relays enable charging of high-voltage batteries according to MCS, CCS, and GB/T standards.

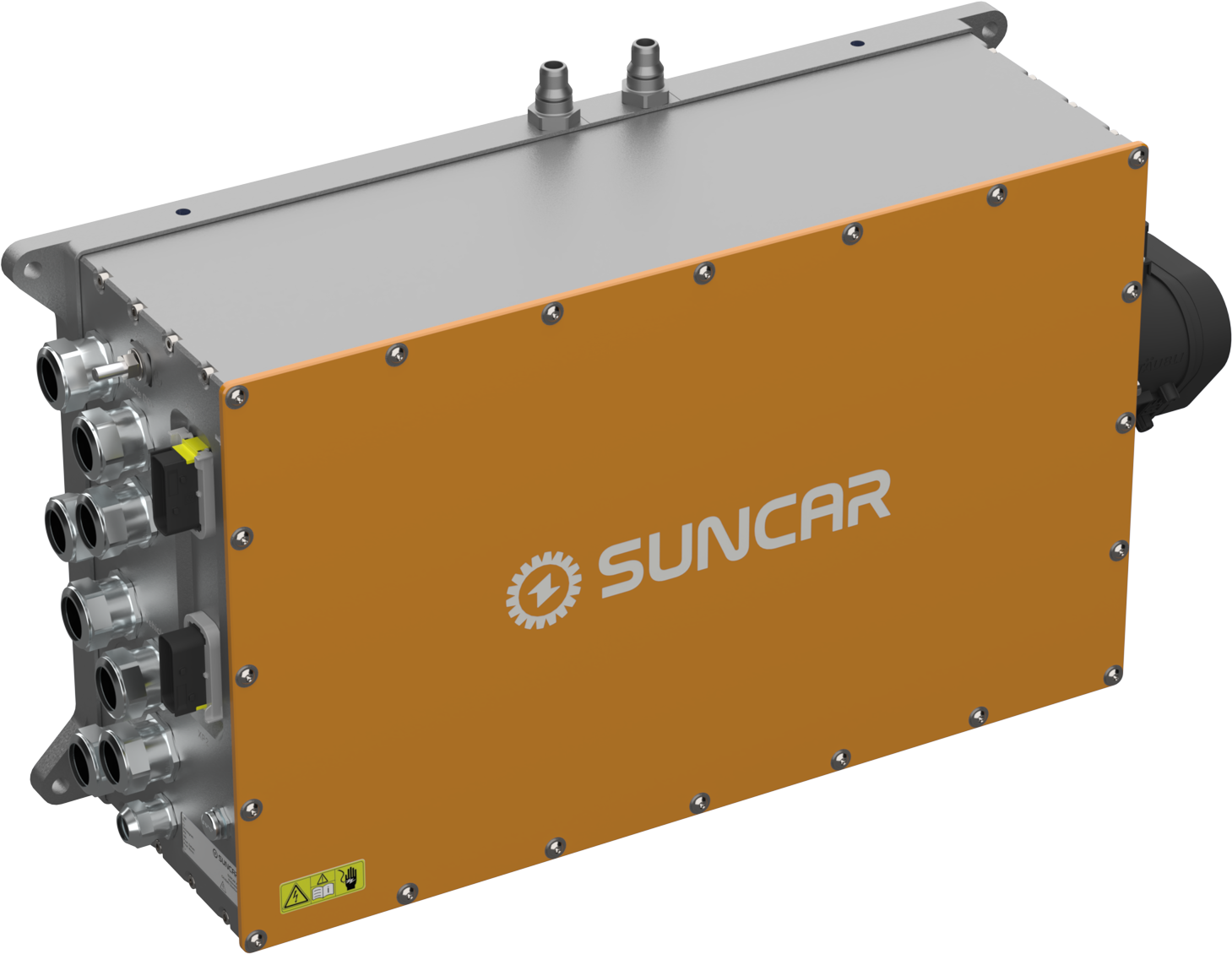

MEGAFLOW1500: Vehicle side MCS charging interface
Features:
- Inlet: MCS Inlet or EMC cable glands
- Outlet: EMC cable glands
- HV Switches
- Mainboard (interlock switch, temperature sensor)
- Galvanically isolated HV current and voltage measurements
- Pressure balance elements
- Active cooling (optional)
Option charge control unit:
- MCS communication according to IEC 61851-23-3 and ISO15118-20
- CAN communication with vehicle control
- Inlet according to IEC TS 63379
- Derating based on Inlet temperature
- Control of connector interlock and LEDs
Specifications:
System voltage
Up to 1000 VDC
Current
1500 A*
Supply voltage
12 / 24 / 48 V
System weight
45 kg
Ambient temperature
-40 – +85 °C
Protection class
IP65
Dimensions (L x W x H)
585 x 356 x 210 mm
Standards
IEC 61439-1,-2 (general)
IEC 60664-1 (electric)
ISO 16750 (environment)
* with active cooling

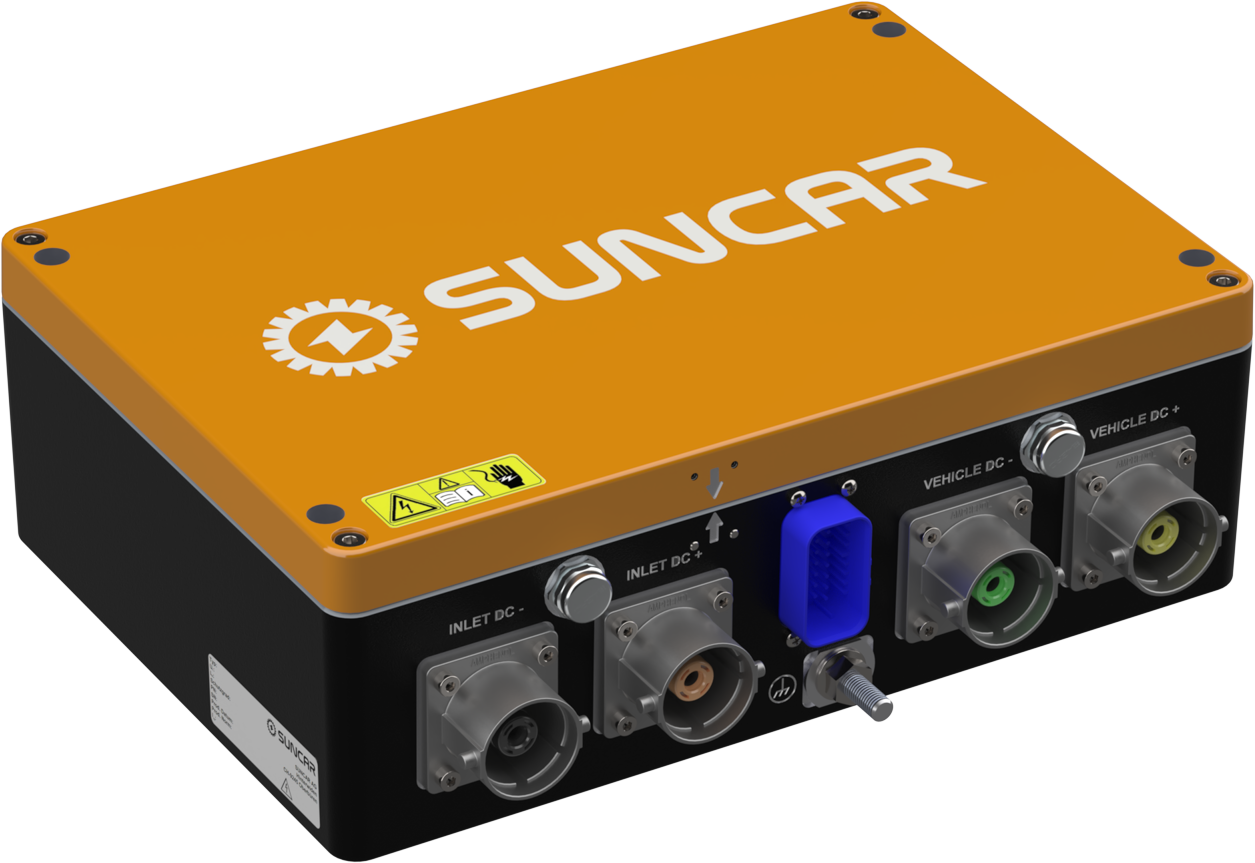

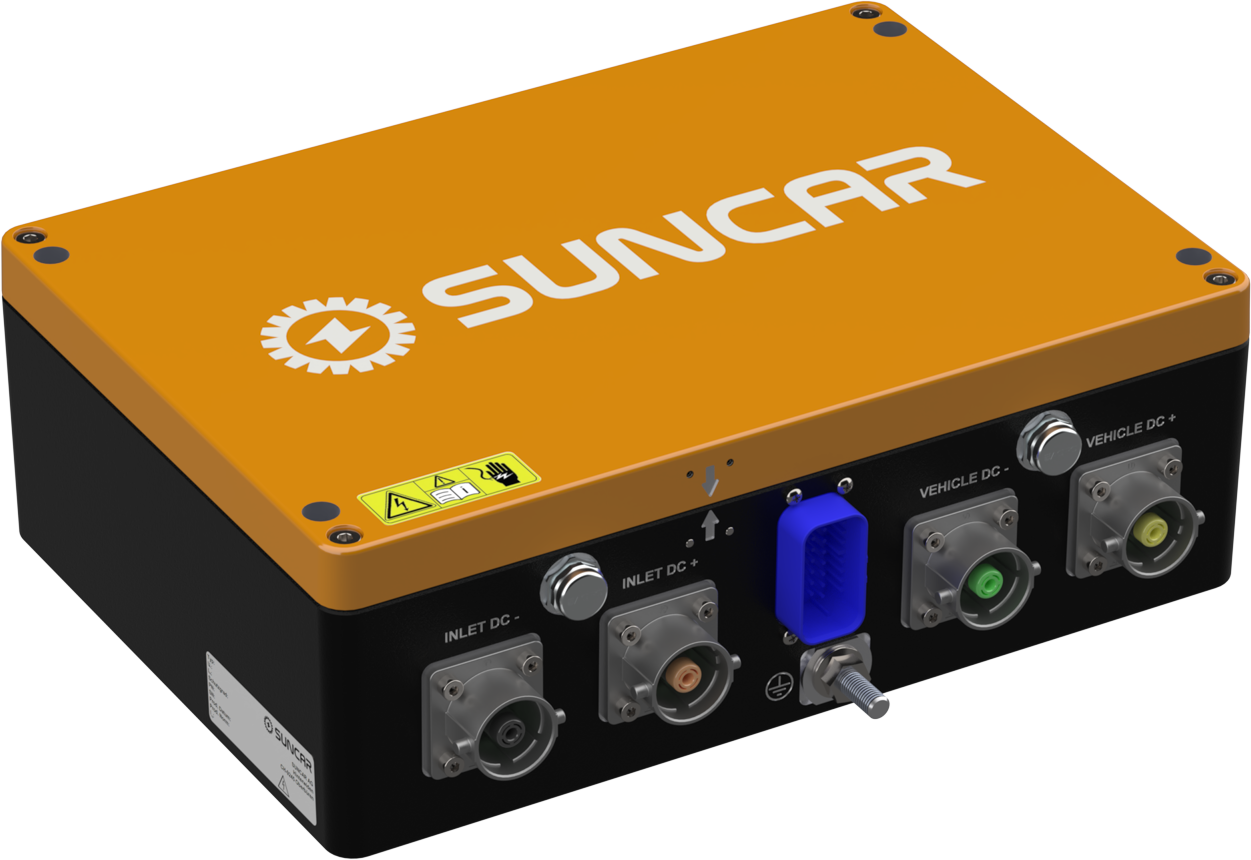

INTERFLOW500C: DC Fast Charging Interface with HV connector
Features:
- HV connector
- HV switches
- Mainboard (interlock switch, temperature sensor)
- Potential equalization
- Pressure compensation element
- Galvanically isolated HV current and voltage measurements
Option Charge Control Unit:
- CCS 2.0 communication according to DIN70121 / ISO15118
- GB/T communication AC and DC charging according to 27930
- CAN communication with vehicle control unit
- Functional safety up to ISO26262 ASIL B
- Inlet according to IEC 62196-3
- Derating based on temperature sensors on the inlet (AC/DC)
- Control of connector interlock and LEDs
Specifications:
Connection type
HV connector
System voltage
800 / 1000 VDC*
Current
350 / 500 A*
Supply voltage
12 / 24 V
System weight
9 kg
Ambient temperature
-40 – +85 °C
Protection class
IP67 und IK09
Dimensions (L x W x H)
330 x 230 x 111 mm
* 2 versions available

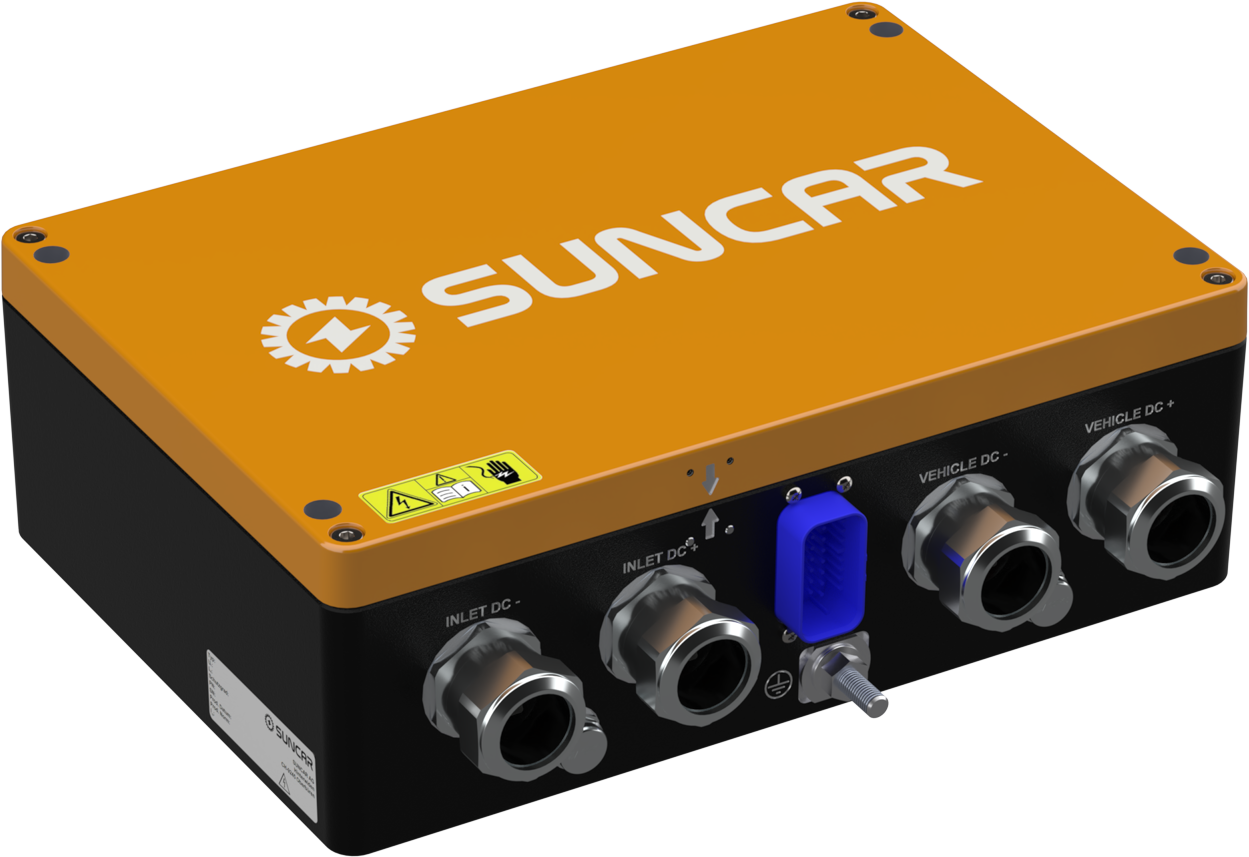

INTERFLOW500G: DC Fast Charging Interface with Cable Glands
Features:
- EMC cable glands
- HV switches
- Mainboard (interlock switch, temperature sensor)
- Potential equalization
- Pressure compensation element
- Galvanically isolated HV current and voltage measurements
Option charge control unit:
- CCS 2.0 communication according to DIN70121 / ISO15118
- GB/T communication AC and DC charging according to 27930
- CAN communication with vehicle control unit
- Functional safety up to ISO26262 ASIL B
- Inlet according to IEC 62196-3
- Derating based on temperature sensors on the inlet (AC/DC)
- Control of connector interlock and LEDs
Specifications:
Connection type
EMC Cable Glands
System voltage
800 / 1000 VDC*
Current
350 / 500 A*
Supply voltage
12 / 24 V
System weight
9 kg
Ambient temperature
-40 – +85 °C
Protection class
IP67 und IK09
Dimensions (L x W x H)
330 x 230 x 111 mm
* 2 versions available
Are you interested in one of our products or do you need a customization?
Please fill out the form without obligation below and we will contact you immediately.
We use your information to respond to your request. For more information, please see our Privacy Policy .
The DC Fast Charging Interface
DC charging made easy
To maximize the flexibility of battery-electric commercial vehicles such as construction machinery and other off-highway vehicles, they must be able to charge quickly. This minimizes downtime. The INTERFLOW or MEGAFLOW DC fast-charging interfaces are the perfect solution for this. They enable the integration of an MCS, CCS, or GB/T interface into the vehicle or machine's HV side, handle communication with the charger, monitor the charging process, and guarantee safety. Compared to alternating current (AC) charging using, for example, construction site power and internally installed chargers, direct current (DC) charging with an external charger allows for significantly higher performance and therefore shorter charging times. The DC fast-charging interfaces were developed for tough everyday use and feature a robust aluminum housing, stable all-metal cable glands, and high-quality internal components. Each product is carefully manufactured in-house at SUNCAR and undergoes a thorough testing process to guarantee reliable and safe operation. The optional external charging controller enables charging according to the latest industry standards, enables customer-specific configurations, and communicates with both the charging station and the vehicle control system via the CAN bus.
Configurations
The DC fast charging interfaces are available in different power levels for various vehicle or machine sizes, each with a voltage of up to 1000 V. If an additional high-voltage distribution system such as our FUSION is required, the INTERFUSION800M can be used as a combined fast charging and distribution module.
Safety
The charging process is continuously monitored by precise, galvanically isolated current and voltage meters, as well as temperature sensors on the charging socket and in the housing, which throttle the charging power if the temperature limit is exceeded. Furthermore, the INTERFLOW and MEGAFLOW are integrated into the machine-wide interlock system via the interlock switch. If a component of the high-voltage system is opened, the interlock system is triggered and activates the battery contactors, which disconnect the machine from the power source. The housing can be earthed at the earthing stud and is also connected to the conductive cable sheath of the input and output cables via the EMC cable glands in order to intercept and earth electromagnetic interference.
